CRBF bearings is Mounting Holed Type High Rigidity Crossed Roller Bearings with Separator,open type and two sides sealed available
Crossed Roller Bearings Parameters
Model number- CRBF 108 AT UU P5
Inner ring(mm)- 10
Outer ring(mm)- 52
Width(mm)- 8
Weight(Kg)- 0.12
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring
precision level- P6,P5,P4,P2
Seals- can be double side (UU)
Clearance- Normal ,T.C1,C2
Other models:
CRBF 108 AT UU, CRBF 2012 AT UU, CRBF 2512 AT UU, CRBF 3515 AT UU, CRBF 8022 AT UU, CRBF 8022 A UU, CRBF 8022 AD UU
Structure:
More parameters
| Shaft diameter mm | Identification Number | Boundary Dimension(mm) | Basic Dynamic load rating C | Basic static load rating Co | Weight |
| Open type | Two side seal | d | D | B | N | N | Kg |
| 10 | CRBF 108 AT | CRBF 108 AT UU | 10 | 52 | 8 | 2910 | 2430 | 0.12 |
| 20 | CRBF 2012 AT | CRBF 2012 AT UU | 20 | 70 | 12 | 7600 | 8370 | 0.31 |
| 25 | CRBF 2512 AT | CRBF 2512 AT UU | 25 | 80 | 12 | 8610 | 10600 | 0.40 |
| 35 | CRBF 3515 AT | CRBF 3515 AT UU | 35 | 95 | 15 | 17300 | 20900 | 0.66 |
| 55 | CRBF 5515 AT | CRBF 5515 AT UU | 55 | 120 | 15 | 20100 | 27700 | 0.96 |
| 80 | CRBF 8022 AT | CRBF 8022 AT UU | 80 | 165 | 22 | 51100 | 72000 | 2.63 |
| CRBF 8022 A | CRBF 8022 A UU | 2.6 |
| CRBF 8022 AD | CRBF 8022 AD UU | 206 |
Features of CRBF series robotics bearings
1.Can bear comprehensive load e.g radial ,axial and overturn load .
2.Thin section bearings save installation space
3.High rotary positioning precision
4.Application area:robot arm,revolute joints,chassis etc parts.
Drawings and other parameters ,pls contact us free, thanks
Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
Online shopping Address: https://www.ydpbbearings.com
|
|

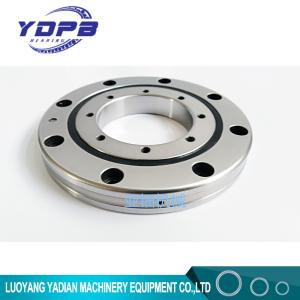

CRBF 108 AT UU P5 cross roller bearing manufacturers 10X52X8mm Images
|
