Axial angular contact ball bearings ZKLDF460,Double direction,for screw mounting.sealing shields on both sides.
Model number- ZKLDF460
Inner ring(mm)- 460
Outer ring(mm)- 600
Width(mm)- 70
Weight(Kg)- 50
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring
Features:
ZKLDF series(four point ball contact),with low frictional ,high rotate accurancy and high limit speed etc. features, can bear higher axial,radial load and with higher tilting rigity.,Main application is the area which need combined load and high precision. E.g machine tool rotary table ,grinding head and other measuring equipment.
Series model No.
ZKLDF100, ZKLDF120, ZKLDF150, ZKLDF200, ZKLDF260, ZKLDF325, ZKLDF395, ZKLDF460, ZKLDF580

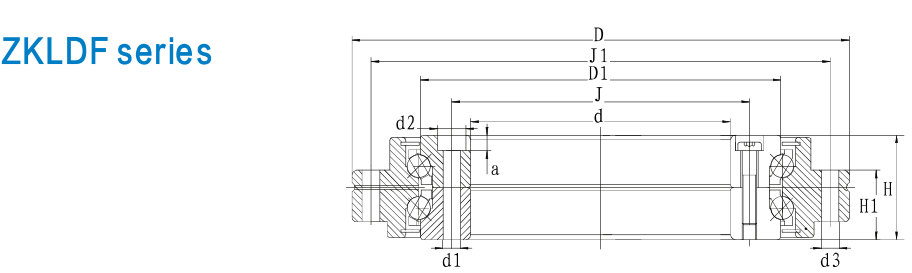

Structure:
| Bearing type | boundary dimensions | fixing holes |
| d | D | H | H1 | D1 | D2 | J | J1 | inner ring | outer ring |
| unit:mm | d1 | d2 | a | quantity | d3 | quantity |
| mm | mm |
| ZKLDF100 | 100 | 185 | 38 | 25 | 160 | 136 | 112 | 170 | 5.6 | 10 | 5.4 | 16 | 5.6 | 15 |
| ZKLDF120 | 120 | 210 | 40 | 26 | 184 | 159 | 135 | 195 | 7 | 11 | 6.2 | 22 | 7 | 21 |
| ZKLDF150 | 150 | 240 | 40 | 26 | 214 | 188 | 165 | 225 | 7 | 11 | 6.2 | 34 | 7 | 33 |
| ZKLDF200 | 200 | 300 | 45 | 30 | 274 | 243 | 215 | 285 | 7 | 11 | 6.2 | 46 | 7 | 45 |
| ZKLDF260 | 260 | 385 | 55 | 36.5 | 345 | 313 | 280 | 365 | 9.3 | 15 | 8.2 | 34 | 9.3 | 33 |
| ZKLDF325 | 325 | 450 | 60 | 40 | 415 | 380 | 342 | 430 | 9.3 | 15 | 8.2 | 34 | 9.3 | 33 |
| ZKLDF395 | 395 | 525 | 65 | 42.5 | 486 | 450 | 415 | 505 | 9.3 | 15 | 8.2 | 46 | 9.3 | 45 |
| ZKLDF460 | 460 | 600 | 70 | 46 | 560 | 520 | 482 | 580 | 9.3 | 15 | 8.2 | 46 | 9.3 | 45 |
| Number of retaining screws | Extraction thread hole | Number of pitches X angle of pitches | Screw tightening torque | Basic load rating | Limiting speed | Bearing frictional torque | weight | bearing type |
| axial |
| dynamic load | static load |
| MA | Ca | Coa | grease |
| G | quantity | Xt quantity | Nm | KN | r/min | Nm | Kg |
| 2 | M5 | 3 | 18×20° | 8.5 | 67 | 251 | 2800 | 1.6 | 4.5 | ZKLDF100 |
| 2 | M8 | 3 | 24×15° | 14 | 72 | 315 | 2400 | 2 | 6 | ZKLDF120 |
| 2 | M8 | 3 | 36×10° | 14 | 76 | 365 | 2000 | 3 | 7.5 | ZKLDF150 |
| 2 | M8 | 3 | 48×7.5° | 14 | 112 | 550 | 1600 | 4.5 | 11 | ZKLDF200 |
| 2 | M12 | 3 | 36×10° | 34 | 155 | 920 | 1200 | 7.5 | 22 | ZKLDF260 |
| 2 | M12 | 3 | 36×10° | 34 | 165 | 1110 | 1000 | 11 | 28 | ZKLDF325 |
| 2 | M12 | 3 | 48×7.5° | 34 | 214 | 1470 | 800 | 16 | 39 | ZKLDF395 |
| 2 | M12 | 3 | 48×7.5° | 34 | 255 | 1860 | 700 | 21 | 50 | ZKLDF460 |
Related Pictures
Application
Applications "Product Application
•Precision machine tools
•precision Turntable, NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Indexing plate of other precision machines etc"
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
Online shopping address: www.ydpbbearings.com
|
|

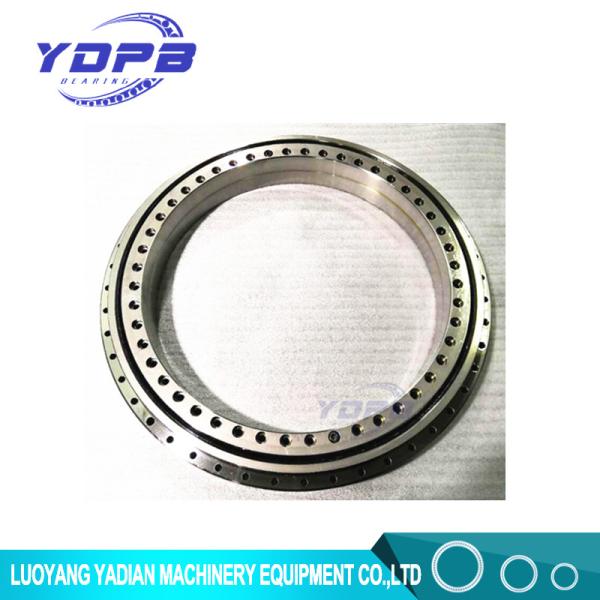

ZKLDF460 Axial angular contact ball bearing 460x600x70mm Rotary Table Bearing Luoyang bearing Images
|
